Kapton polyimide heater

  • Special Shape Polyimide Heater
  • Special Shape Polyimide Heater
  • Special Shape Polyimide Heater
  • Special Shape Polyimide Heater
  • Special Shape Polyimide Heater
  • Special Shape Polyimide Heater
Special Shape Polyimide HeaterSpecial Shape Polyimide HeaterSpecial Shape Polyimide HeaterSpecial Shape Polyimide HeaterSpecial Shape Polyimide HeaterSpecial Shape Polyimide Heater

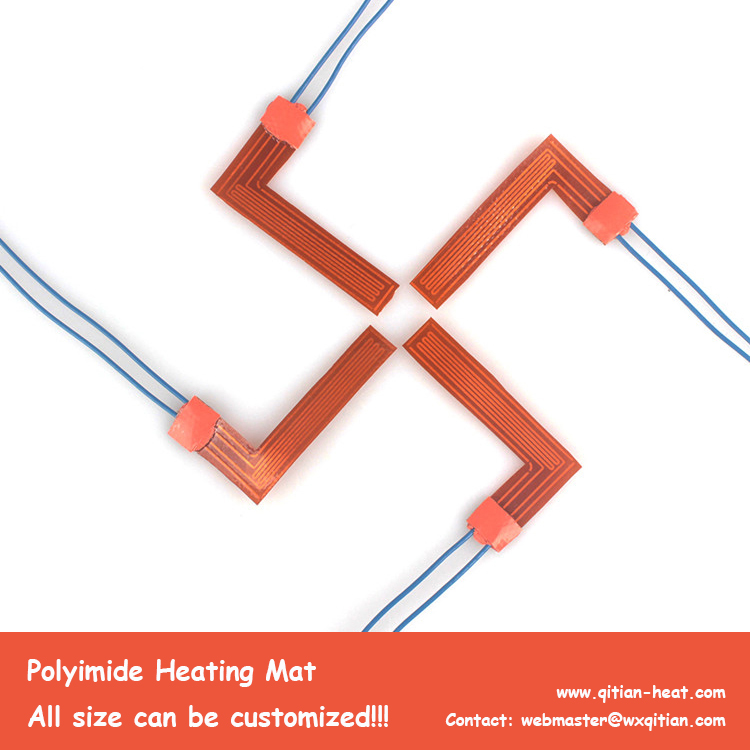

Special Shape Polyimide Heater

  • Voltage: 0~480V
  • Thickness: 1.5mm
  • Size: customized
  • Temperature:0~250℃
  • Product description:
  • INQUIRY

Kapton Polyimide Heater

Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.


Heater Features

①Heater thin and light so you can just position on the need for heating without heating part being avoided.
②Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature difference is minimal.
③Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
④Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
⑤There FEP adhesive can be 200 ° C (392 ° F)
⑥Suitable for vacuum environments (NASA-RP-1061)
⑦ Resistant to most chemicals: acids and alkaline solvents erosion
⑧ If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
⑨Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
⑩Providing a liquid immersion design (non-standard)


Heater Shape

The heater shape can be customized according to your requirements.



Application

1. Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
2. Stabilize optoelectronic components
3. Test or simulate integrated circuits
4. Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD'S
5. Protect aircraft eletronic and mechanical devices in cold weather / area
